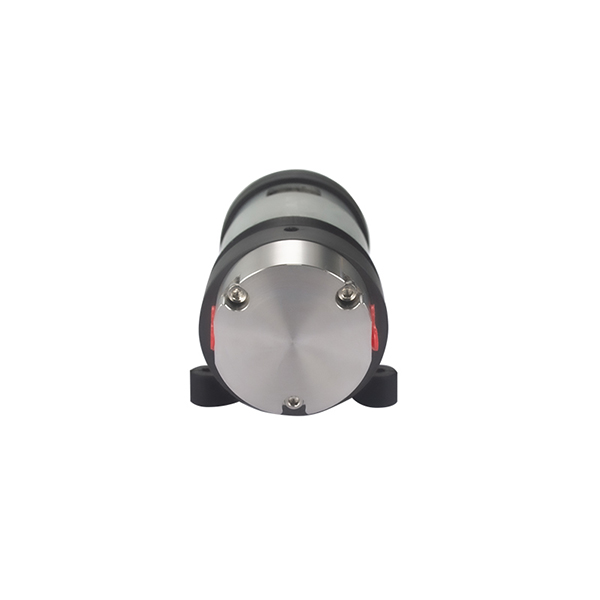

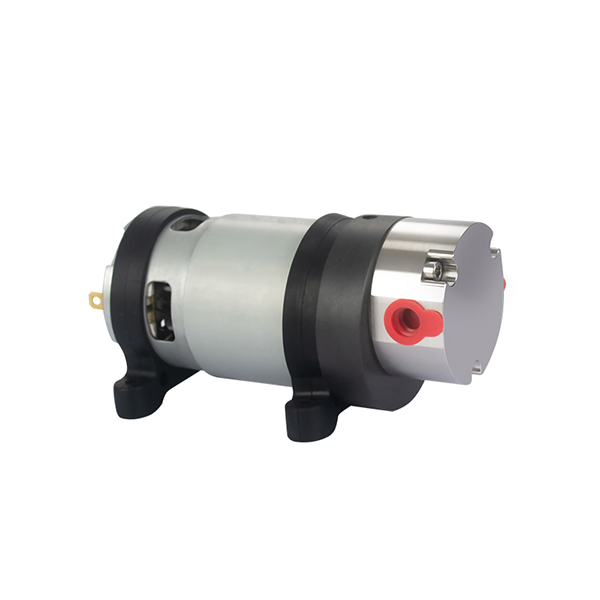

MPD025 Micro Gear Pump With Brushed DC 30W Motor
MPD025 Magnetic Drive Gear Pump is powered by DC brushed motor, reach 1-2.5L/M flow rate, 0.5-5bar outlet pressure resistance. Adopts to small flow and low pressure occasions.
- Low Pulse
Through the gears to provide continuous steady fluid transportation. - Compact size.Large Flow
Ideal for space-constrained equipment requiring high flow rate. - Cost-effective
Brushed motors have a relatively simple structure, mature manufacturing process and low production costs - Easy operation
Brushed motors control speed and steering by voltage regulation, the control system is very simple.
Micro Gear Pump Descriptions
MPD025 miniatur gear pump with DC brush motor is a small displacement external gear pump. It adopts SS316L material machined casing, PEEK gears, sealing ring and shaft end dynamic seal selected fluorine rubber (FKM) seal. Compact structure, small size, high flow rate, by changing the voltage to adjust the motor speed, to achieve flow regulation. Suitable for fructose machine, packaging machine, filling machine, vending machine, frying pan, food processing, cleaning and so on.
MICRO GEAR PUMP Model Specification
| Model | MPD | 025 | B | A | A | B | 24V | 30W |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal MPC: PTFE gasket seal MPD: Direct Drive (non-magnetic) | ||||||
| 2 | Flow | 0-2.5L/min | ||||||
| 3 | Pump Body | A：304； B：316L； C：PPS； D：Hastelloy; E: Titanium alloy | ||||||
| 4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel D: Gear PEEK+shaft titanium alloy | ||||||
| 5 | Inlet/Outlet Thread | A: G1/8 B: G1/4 C: G3/8 D: G1/2 E: G3/4 F: G1 ” G: G1″1/4 H: M5 X: other customzations; (Letter: tooth) 1:25.4 2:34 3:38 4:50.5 5:640: Other customizations (Number: Chuck) | ||||||
| 6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) C：SM(Stepper Motor) D：SVCA （Servo Motor） E：ACIM 3 Phase Asynchronous Induction Motor F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion Proof Brushless DC Motor） | ||||||
| 7 | Voltage | 12V/24V / 48V / 220V / 380V | ||||||
| 8 | Power | 30W/40W/60W/70W/80W/100W/110W/150W/200W/250W/300W/370W/400W/550W/750W/1000W | ||||||
MICRO GEAR PUMP Technical Paramaters
| Model | Medium Viscosity | Medium Temperature | Pressure Difference | Inlet vacuum level | Motor | Motor Speed |
| MPD025BAAB24V30W | 0~3000cps | -30℃~120℃ | 5Bar | -0.85Bar | 30WBDC | 500-4500rpm |
Get a Free Quote of Micro Magnetic Gear Pump

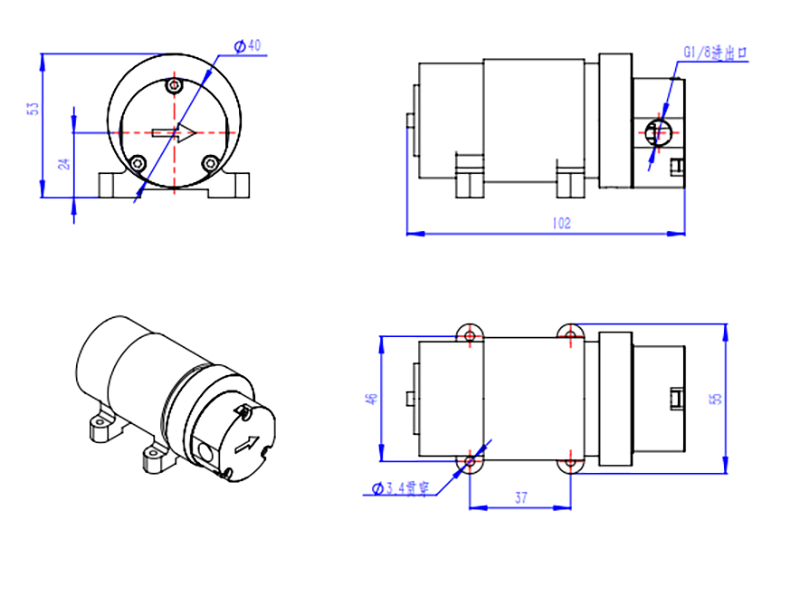

Dimensions

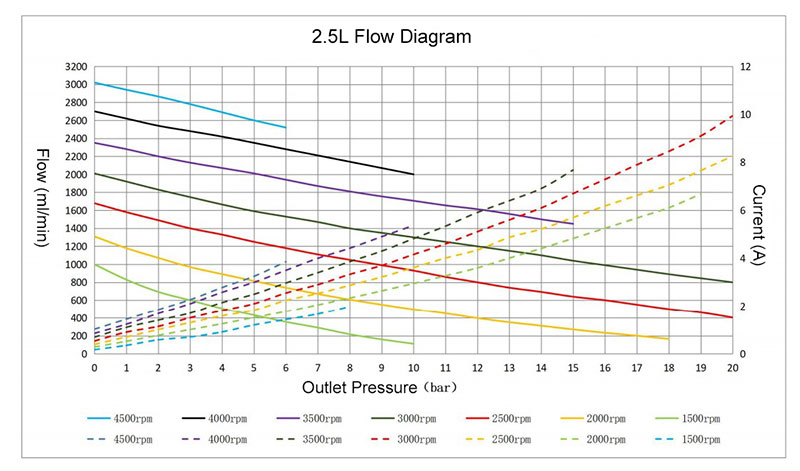

Performance Curve

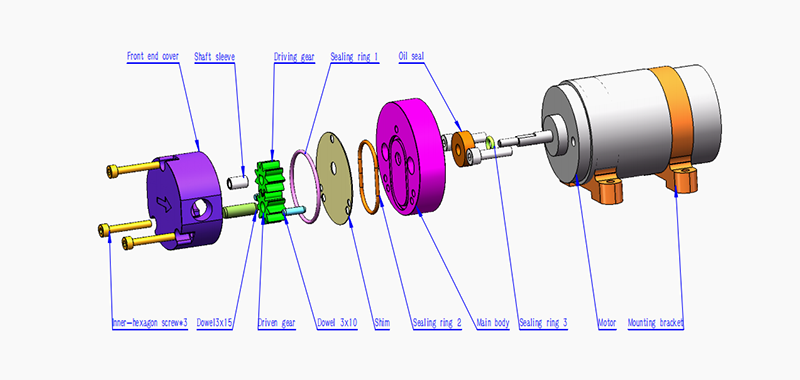

Exploded View Drawing
