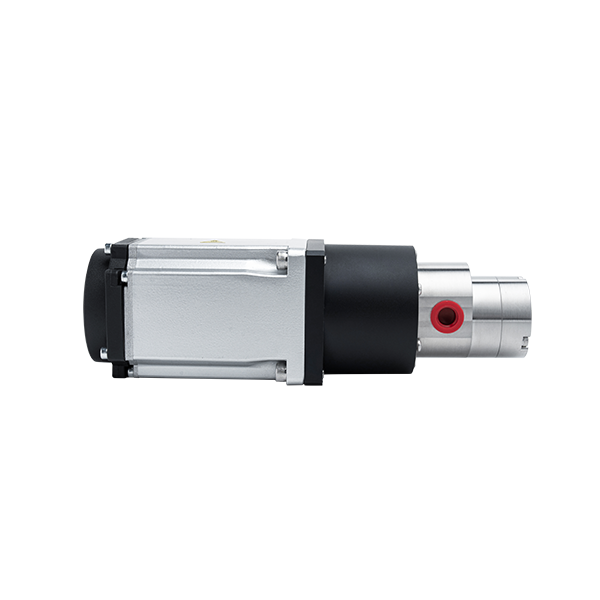

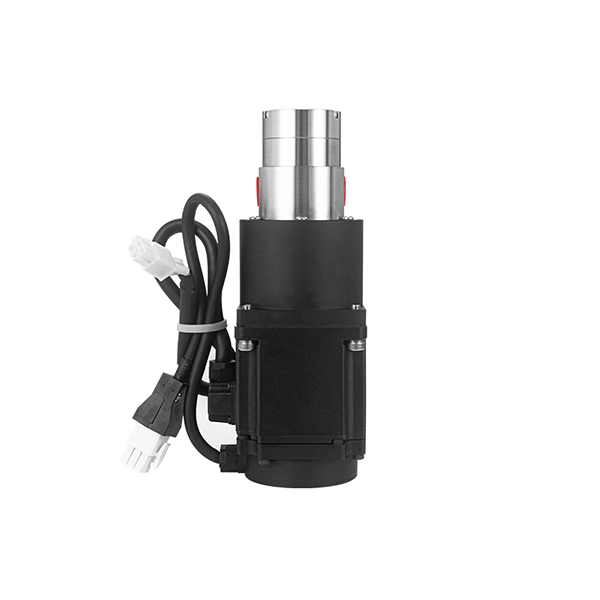

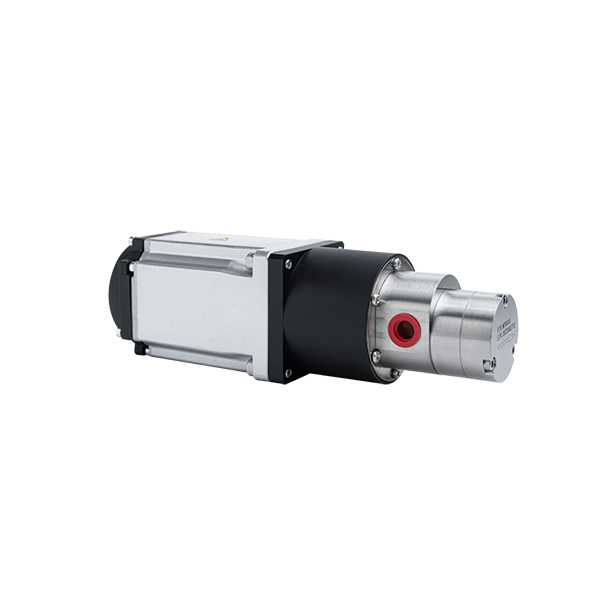

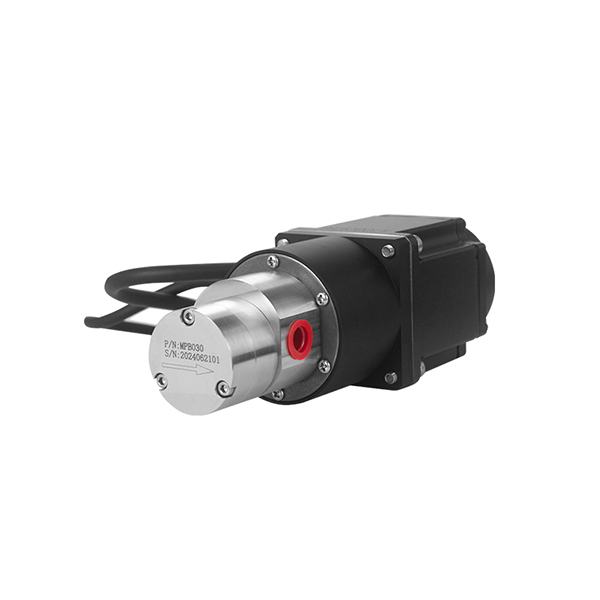

MPB030 Micro Magnetic Drive Gear Pump With AC Servo 200W Motor
MPB030 Magnetic Drive Gear Pump is powered by AC servo motor, reach 1.5-3LPM flow rate, 0.5-15bar outlet pressure resistance. High precision, superior control, exceptional stability and quick responding.
- No pulse accurate delivery
Through the gears to provide continuous accurate fluid transportation. with servo motor delivery accuracy of +/-0.2%. - Strong vacuum suction capacity
High and Stable Conveyance Pressure.High pressure delivery in low viscosity liquids. - No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage. - Low nosie、Energy saving
Torque is transmitted through magnetic coupling, avoiding the mechanical contact of traditional pumps. Helical gears are designed for a smooth meshing process, reducing friction, impact and vibration. Automatic adjustment of power output according to load conditions, reducing energy consumption. - Long life
High-performance materials and sophisticated technology. Brushless motors eliminate traditional carbon brushes for longer life.
Micro Gear Pump Descriptions
MPB030 magnetic drive gear pump adopts AC brushless servo motor, the motor shaft end is connected with REPM outer ring magnetic circuit, i.e., the magnetic coupling principle work. With an independent controller can achieve precise control, stable operation and long lifespan. The speed and steering of the motor is controlled by an external driver, providing finer control of current, speed and position. Closed-loop feedback system provides excellent dynamic response, high torque density, and precise position control, adapting to the demands of high-speed motion with frequent starts and stops.
MICRO GEAR PUMP Model Specification
| Model | MPB | 030 | B | A | A | D | 220V | 200W |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal MPC: PTFE gasket seal MPD: Direct Drive (non-magnetic) | ||||||
| 2 | Flow | 0-3L/min | ||||||
| 3 | Pump Body | A：304； B：316L； C：PPS； D：Hastelloy; E: Titanium alloy | ||||||
| 4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel D: Gear PEEK+shaft titanium alloy | ||||||
| 5 | Inlet/Outlet Thread | A: G1/8 B: G1/4 C: G3/8 D: G1/2 E: G3/4 F: G1 ” G: G1″1/4 H: M5 X: other customzations; (Letter: tooth) 1:25.4 2:34 3:38 4:50.5 5:640: Other customizations (Number: Chuck) | ||||||
| 6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) C：SM(Stepper Motor) D：SVCA （Servo Motor） E：ACIM 3 Phase Asynchronous Induction Motor F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion Proof Brushless DC Motor） | ||||||
| 7 | Voltage | 12V/24V / 48V / 220V / 380V | ||||||
| 8 | Power | 30W/40W/60W/70W/80W/100W/110W/150W/200W/250W/300W/370W/400W/550W/750W/1000W | ||||||
MICRO GEAR PUMP Technical Parameters
| Model | Medium Viscosity | Medium Temperature | Pressure Difference | Inlet vacuum level | Motor | Motor Speed |
| MPB030BAAD24V200W | 0~3000cps | -30℃~120℃ | 15Bar | -0.85Bar | 200WSVCA | 0~3000rpm |
Get a Free Quote of Micro Magnetic Gear Pump

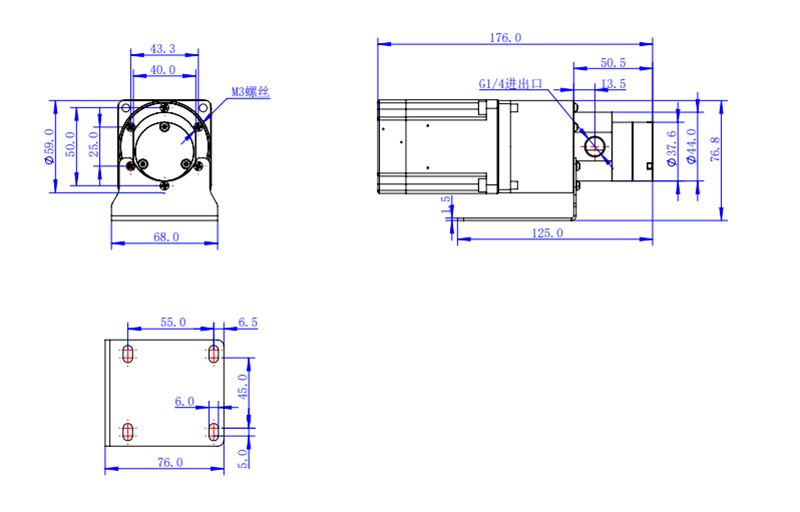

Dimensions

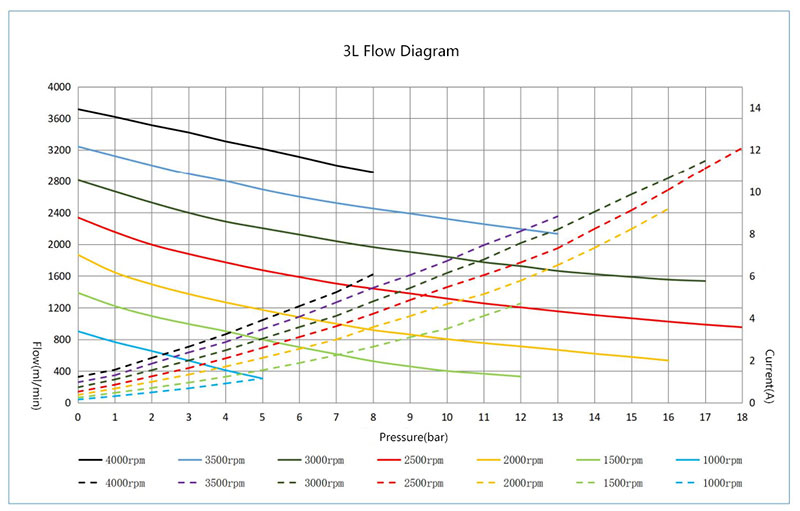

Performance Curve

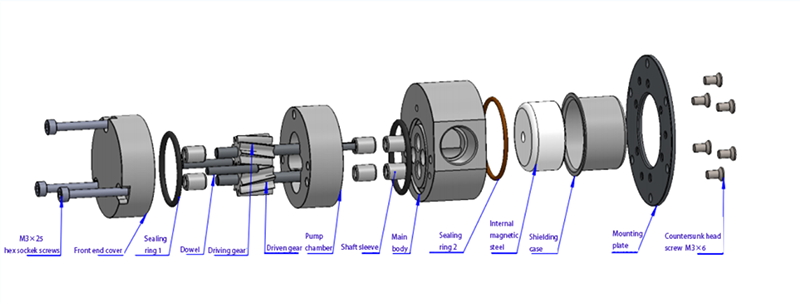

Exploded View Drawing
