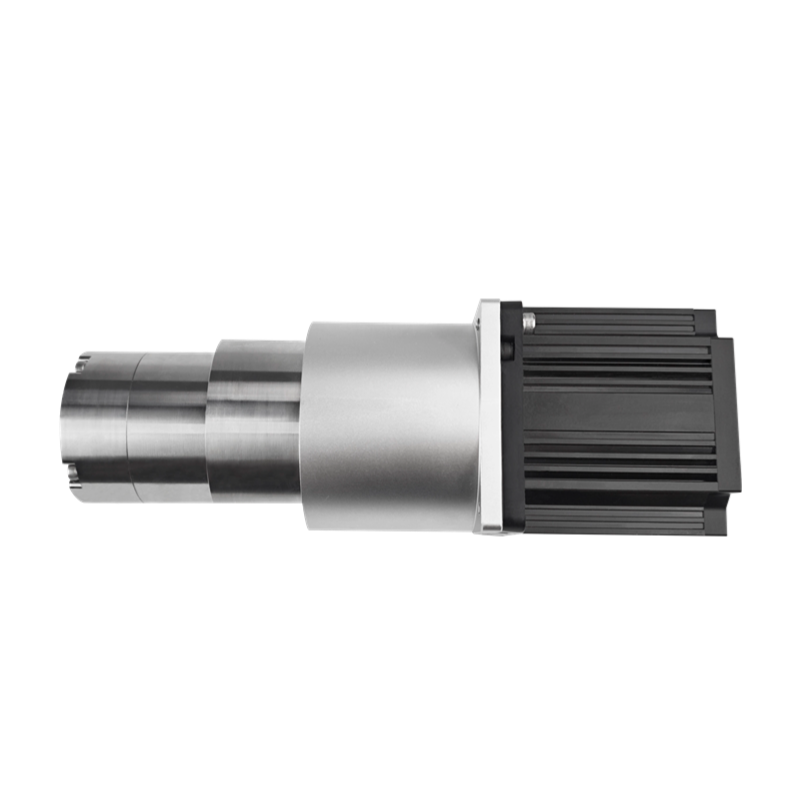

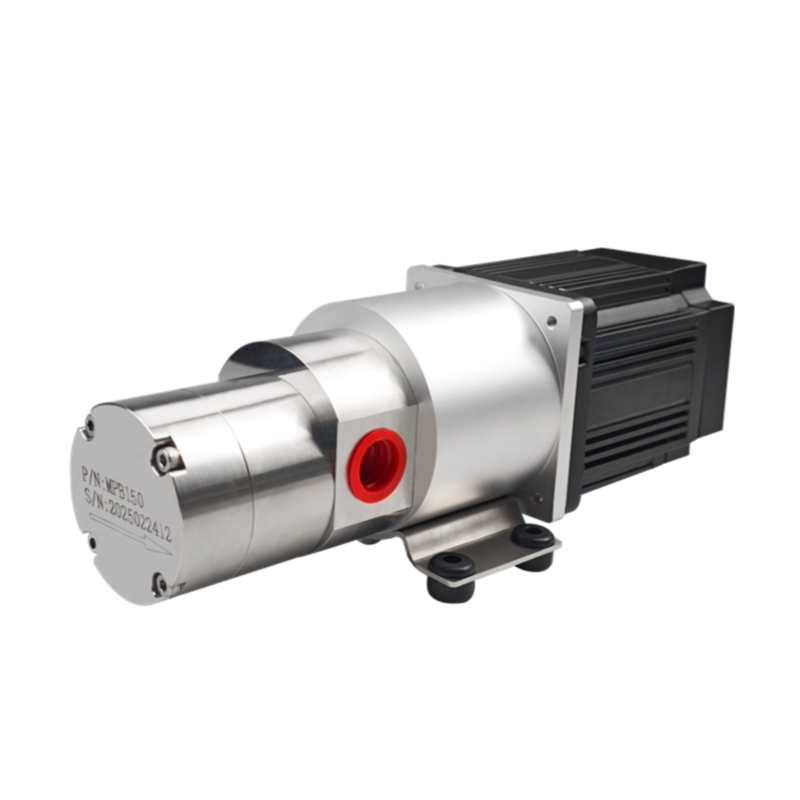

MPB150 Micro Magnetic Drive Gear Pump With Brushless DC 400W Motor
MPB150 Magnetic Drive Gear Pump is powered by DC brushless motor, suitable for 0-15L/PM flow and 10bar outlet pressure. Adopts to high speed, accurate control and efficient operating application.
- No pulse accurate delivery
Through the gears to provide continuous accurate fluid transportation,with servo and stepper motr delivery accuracy of +/-0.5%. - Strong vacuum suction capacity
High and Stable Conveyance Pressure.High pressure delivery in low viscosity liquids. - No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage. - Low Noise
Torque is transmitted through magnetic coupling, avoiding the mechanical contact of traditional pumps. Helical gears are designed for a smooth meshing process, reducing friction, impact and vibration. - Long life
High-performance materials and sophisticated technology. Brushless motors eliminate traditional carbon brushes for longer life.
Micro Gear Pump Descriptions
MPB150 magnetic drive gear pump with DC brushless drive integrated motor. Stable operation and long life. Precise control of the motor in terms of current, speed and position through the internal driver provides high accuracy and controllability. Widely used in cooling system, new energy and other fields.
MICRO GEAR PUMP Model Specification
| Model | MPB | 150 | B | A | D | A | 24V | 400W |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal | ||||||
| 2 | Model/Displacement | 150:5.4ml/rev Maximum flow rate is 10 LPM | ||||||
| 3 | Pump Body | A：304； B：316L； C：PPS； Other customizations | ||||||
| 4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic Other customizations | ||||||
| 5 | Inlet/Outlet Thread | D: G1/2; E:other customzations | ||||||
| 6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) D：SVCA （Servo Motor） E：ACIM 3 Phase Asynchronous Induction Motor F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion Proof Brushless DC Motor） | ||||||
| 7 | Voltage | 24V | ||||||
| 8 | Power | 200W/400W | ||||||
MICRO GEAR PUMP Technical Paramaters
| Model | Medium Viscosity | Medium Temperature | Pressure Difference | Inlet vacuum level | Motor | Motor Speed |
| MPB150BADA24V400W | 0~3000cps | -40℃~100℃ If the temperature exceeds 70℃, please contact our sales staff | 10Bar | -0.85Bar | 400WBLDC | 500~3500rpm |
Get a Free Quote of Micro Magnetic Gear Pump

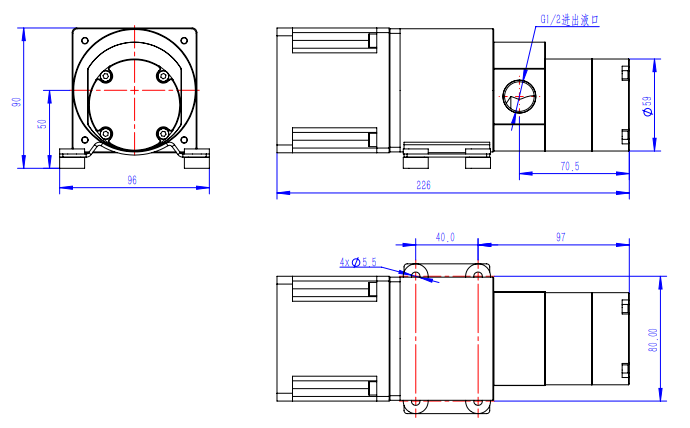

Dimensions

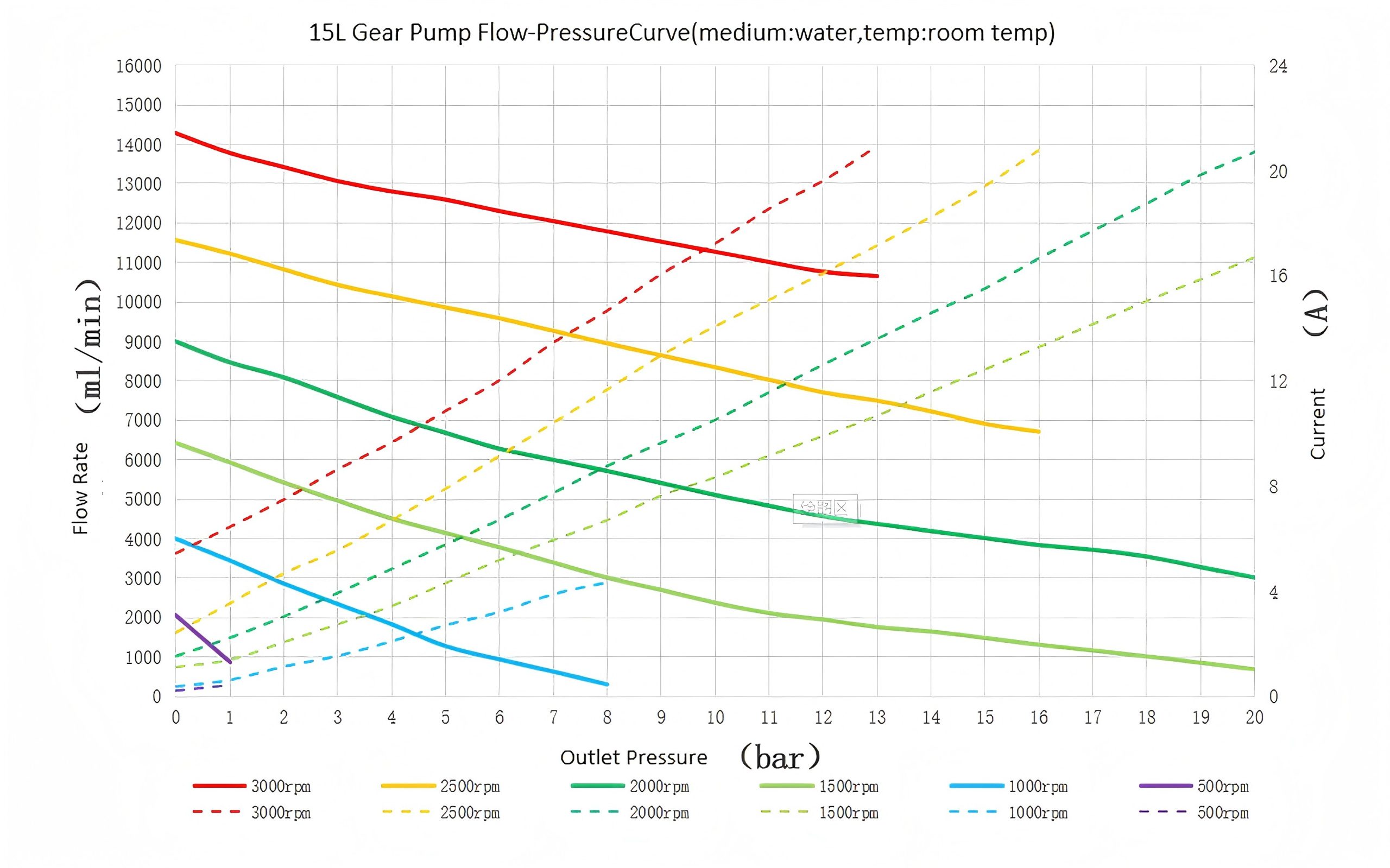

Performance Curve
