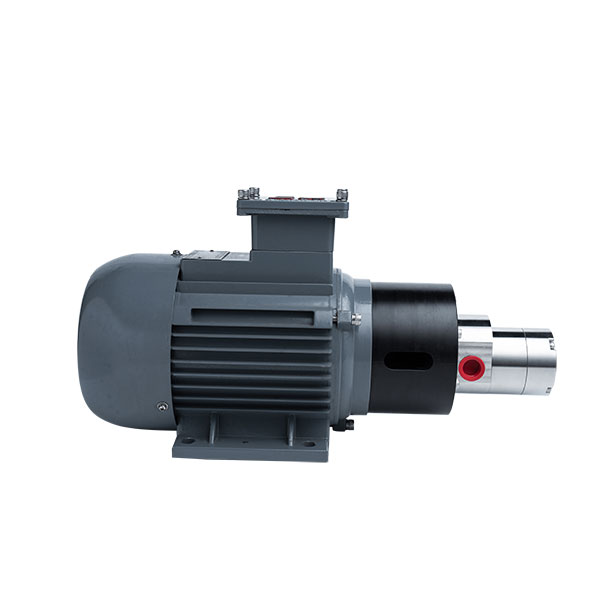

MPB150 Micro Magnetic Drive Gear Pump With AC Explosion-Proof 550W Motor
MPB150 Magnetic Drive Gear Pump is powered by Ac explosion-proof asynchronous motor, 10-15L/PM flow and 0.5-8bar outlet pressure. Designed for high efficient, quick starting and safety strengthened application.
- No pulse
Through the gears to provide continuous accurate fluid transportation - Strong vacuum suction capacity
High and Stable Conveyance Pressure,high pressure delivery in low viscosity liquids. - No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage. - Convenient Operation
Three-phase asynchronous motors can be started quickly when the power is turned on, without manual operation, suitable for occasions that require frequent switching. - High energy efficiency
Three-phase asynchronous motors are characterised by low power factor and high efficiency, which can reduce energy consumption and lower operating costs.
Micro Gear Pump Descriptions
MPB150 miniature magnetic drive gear pump adopts AC asynchronous explosion-proof motor as power, and the shaft end of the motor is connected with the outer ring magnetic circuit of REPM to drive the gear pump operation. It has the features of constant speed, large torque, stable operation and long life. AC explosion-proof motor is widely used in petroleum, oilfield, fuel oil, and other flammable liquid transport.
MICRO GEAR PUMP Model Specification
| Model | MPB | 150 | B | A | D | F | 220V | 550W |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal MPC: PTFE gasket seal MPD: Direct Drive (non-magnetic) | ||||||
| 2 | Flow | 0-15L/min | ||||||
| 3 | Pump Body | A：304； B：316L； C：PPS； D：Hastelloy; E: Titanium alloy | ||||||
| 4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel D: Gear PEEK+shaft titanium alloy | ||||||
| 5 | Inlet/Outlet Thread | A: G1/8 B: G1/4 C: G3/8 D: G1/2 E: G3/4 F: G1 ” G: G1″1/4 H: M5 X: other customzations; (Letter: tooth) 1:25.4 2:34 3:38 4:50.5 5:640: Other customizations (Number: Chuck) | ||||||
| 6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) C：SM(Stepper Motor) D：SVCA （Servo Motor） E：ACIM 3 Phase Asynchronous Induction Motor F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion Proof Brushless DC Motor） | ||||||
| 7 | Voltage | 12V/24V / 48V / 220V / 380V | ||||||
| 8 | Power | 30W/40W/60W/70W/80W/100W/110W/150W/200W/250W/300W/370W/400W/550W/750W/1000W | ||||||
MICRO GEAR PUMP Technical Paramaters
| Model | Medium Viscosity | Medium Temperature | Pressure Difference | Inlet vacuum level | Motor | Motor Speed |
| MPB150BADF220V550W | 0~3000cps | -20℃~100℃ | 5Bar | -0.85Bar | 550WACIMB | 200~2800rpm |
Get a Free Quote of Micro Magnetic Gear Pump

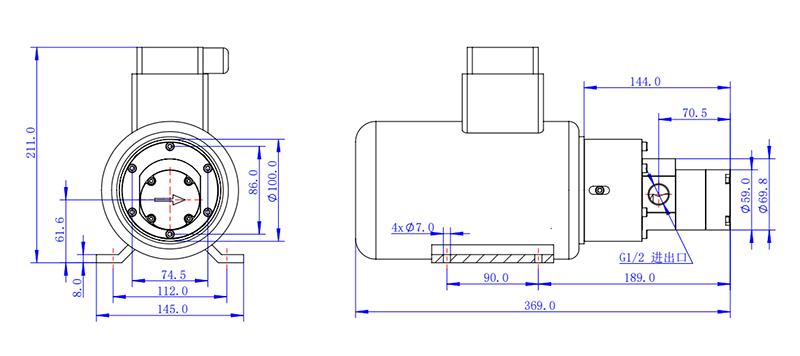

Dimensions

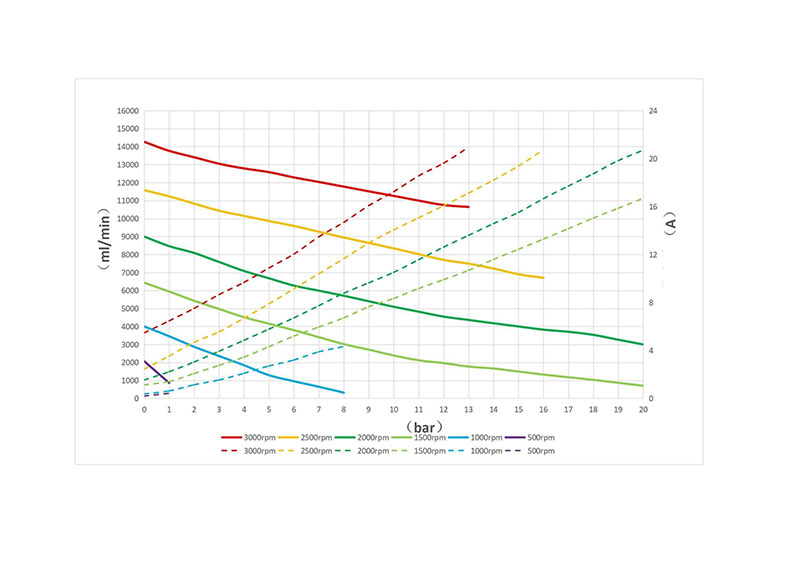

Performance Curve
