MPB015 Micro Magnetic Drive Gear Pump With BLDC 70W Motor
MPB015 Magnetic Drive Gear Pump is powered by drive integrated motor,1-1.5L/min flow and 0.5-20bar pressure requirements. Adopts to high speed and high efficient occasions.
- No pulse accurate delivery
Through the gears to provide continuous accurate fluid transportation,with servo and stepper motr delivery accuracy of +/-0.5%. - Strong vacuum suction capacity
High and Stable Conveyance Pressure.High pressure delivery in low viscosity liquids. - No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage. - Compact size
Adoption of shaftless motor, smaller size, flexible and easy to install, can work stably in the narrow space. - Low Noise
Torque is transmitted through magnetic coupling, avoiding the mechanical contact of traditional pumps. Helical gears are designed for a smooth meshing process, reducing friction, impact and vibration. - Long life
High-performance materials and sophisticated technology. Brushless motors eliminate traditional carbon brushes for longer life.
Micro Gear Pump Descriptions
MPB015 magnetic drive gear pump with DC brushless drive integrated motor, stable operation and long service life. Motor and drive all in one design, brushless driver integrated in the end of the motor, there are two types, liquid inlet and outlet on the same side and different side. The use of shaftless motor, smaller volume, flexible and convenient installation, can be in the narrow space of stable work.
MICRO GEAR PUMP Model Specification
| Model | MPB | 015 | B | A | A | A | 24V | 70W |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal | ||||||
| 2 | Model/Displacement | 015:0.35ml/rev Maximum flow rate is 1.5 LPM | ||||||
| 3 | Pump Body | A：304； B：316L； C：PPS； Other customizations | ||||||
| 4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic Other customizations | ||||||
| 5 | Inlet/Outlet Thread | A:G1/8 B:G1/4 Other customizations | ||||||
| 6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) C：SM(Stepper Motor) D：SVCA （Servo Motor） E：ACIM 3 Phase Asynchronous Induction Motor F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion Proof Brushless DC Motor） | ||||||
| 7 | Voltage | 24V | ||||||
| 8 | Power | 40W/70W | ||||||
MICRO GEAR PUMP Technical Paramaters
| Model | Medium Viscosity | Medium Temperature | Pressure Difference | Inlet vacuum level | Motor | Motor Speed |
| MPB015BAAA24V70W | 0~3000cps | -40℃~100℃ If the temperature exceeds 70℃, please contact our sales staff | 20Bar | -0.85Bar | 70WBLDC | 200~4500rpm |
Get a Free Quote of Micro Magnetic Gear Pump

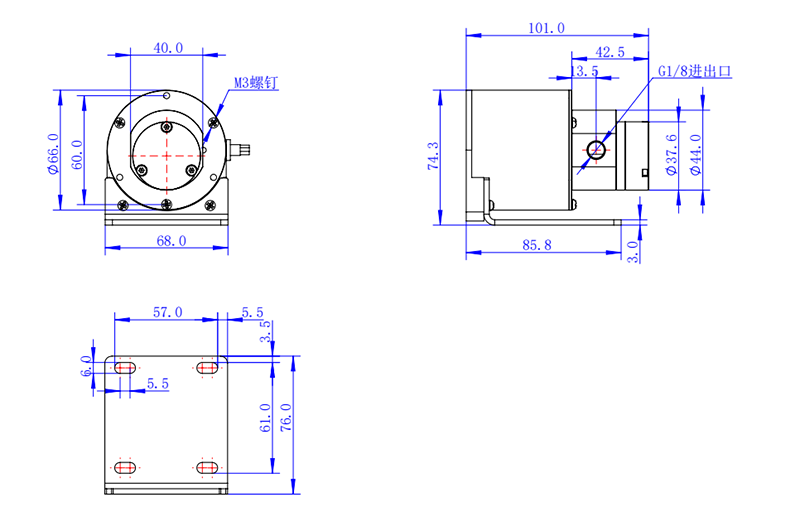

Dimensions

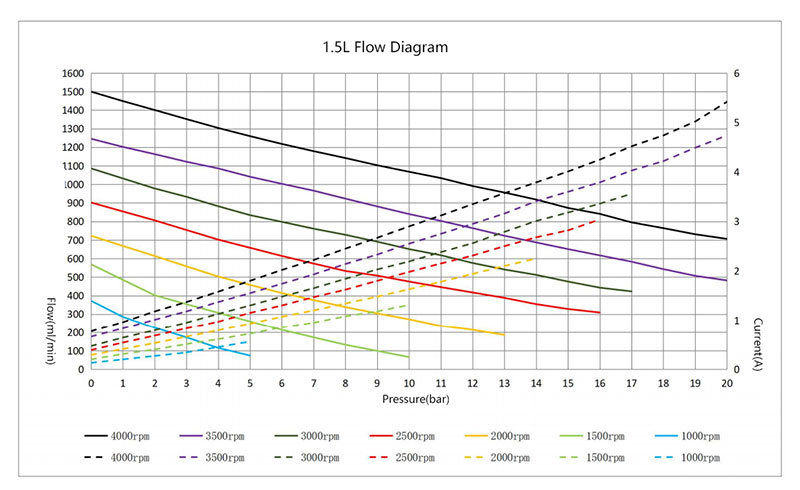

Performance Curve

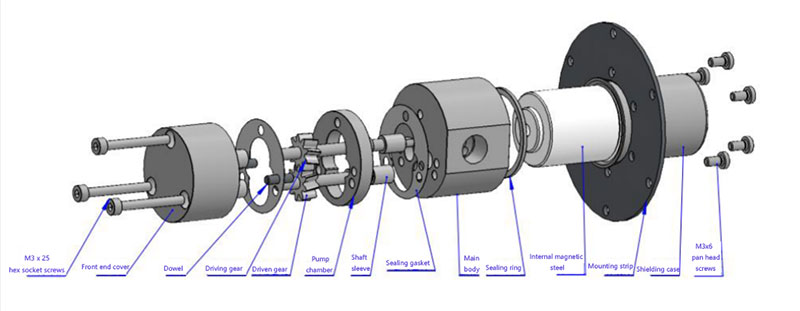

Exploded View Drawing
