Our pumps handle system pressures up to 40 bar and differential pressures up to 25 bar. They keep flow steady even when pressure changes, making them reliable for tough industrial fluid transfer jobs. This stability helps maintain smooth operation and extends pump life.

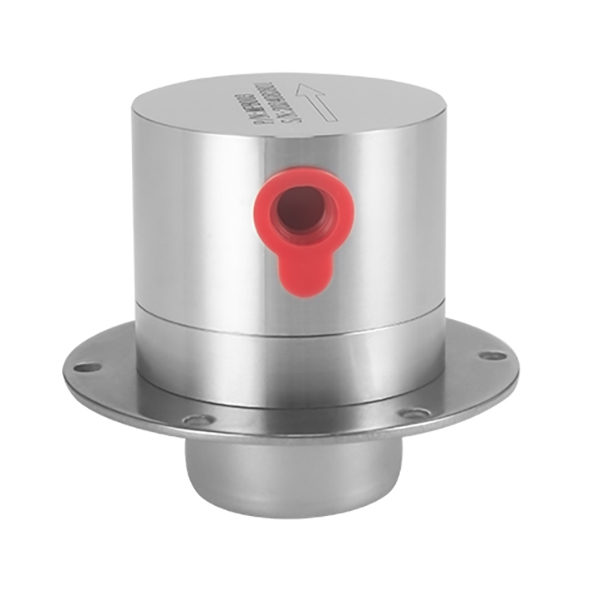

High Quality Micro Gear Pump China Manufacturer & Supplier
CHENHUI is your trusted manufacturer and supplier of high quality micro gear pumps. Our pumps feature magnetic coupling for leak-free, precise fluid transfer with low maintenance and high durability. Designed for chemical processing, medical dosing, lubrication, and fuel transfer, they ensure smooth, reliable performance in demanding applications.
-
- No pulse accurate delivery: Through the gears to provide continuous accurate fluid transportation. with servo motor and stepper motor delivery accuracy of +/-0.5%.
- Strong vacuum suction capacity: High and stable conveyance Pressure ,high pressure delivery in low viscosity liquids.
- No leakage: Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage.
- Long Lifespan: High-performance and precision technology, advanced craftsmanship to extend its operational lifespan.
- Compact structure: Compact and small design for applications with restricted space.
Durable and Corrosion Resistant
Our pumps use stainless steel housings and tough PEEK gears. Shafts come in options like 316L stainless steel, ceramic, tungsten steel, and titanium alloy. These materials resist corrosion and wear well, ensuring steady, dependable performance even in harsh chemical or high-temperature conditions.
Wide Range of Flow Rates to Choose
Our micro gear pumps offer precise, stable flow at low volumes. They come in various flow rate options to fit different needs. This makes them suitable for dosing, sampling, and other tasks requiring accurate fluid control.
Reliable Performacne Under High Pressure
Self-Priming Capability
Our micro gear pumps start smoothly without needing to be pre-filled. They can run briefly dry at startup without damage, but running dry continuously will cause harm and should be avoided.
Micro Gear Pump Series From CHENHUI
CHENHUI’s micro gear pumps are reliable fluid handling solutions for various industries. Engineered for precision, these compact pumps ensure consistent flow in lubrication, cooling, and chemical systems.
Our pumps include equal-sized driving and driven gears. These gears rotate in opposite directions, trapping fluid between the teeth and pushing it toward the outlet. The external magnet delivers torque from the motor. The internal magnet receives this torque and drives the gear inside the sealed chamber. Together, they enable contactless, sealed, and efficient power transmission.
Ideal for applications requiring reliable and efficient fluid circulation, our pumps are designed to operate smoothly with low maintenance, even in tough environments. With precise flow control, low energy consumption, and minimal noise, they are perfect for handling oils, coolants, and chemicals.
Applications of Magnetic Coupled Micro Gear Pumps
Circulation
Micro gear pump ensure precise, efficient fluid circulation in systems like cooling, lubrication, and hydraulics, maintaining steady flow and reliable performance in compact spaces.
Metering
Micro gear pumps are perfect for dosing applications, offering precise and consistent fluid delivery in small quantities. Ideal for pharmaceuticals, food, and chemicals, they ensure accurate metering for controlled processes.
Transfer
Micro gear pumps are ideal for fluid transfer, providing efficient and reliable movement of liquids in applications such as fuel, chemicals, and oils. Their compact design ensures smooth, precise transfer in tight spaces, offering consistent performance across various industries.
Lubrication Systems
Micro gear pump in lubrication systems ensure precise, steady flow of lubricant to reduce friction, wear, and extend machinery life in industrial, automotive, and aerospace applications.
Why Choose CHENHUI For Micro Gear Pumps?
CHENHUI is a reliable micro gear pump manufacturer and supplier from China. Our magnetic coupled micro gear pumps guarantees high quality, competitive pricing, and reliable performance.
Our pumps undergo strict quality control for durability and efficiency. With affordable pricing and a one-year warranty, we also provide excellent after-sales support. Timely delivery ensures your projects stay on schedule. Chenhui offers a trusted, cost-effective solution with full support.
Our micro gear pumps can be customized with different materials and sizes to match your exact flow and pressure needs. We adjust pump parameters to fit specific chemical compatibilities and temperature ranges. Custom orders support low minimum quantities, allowing precise solutions without excess inventory.
More Information
Materials Used in Micro Gear Pumps
CHENHUI micro gear pumps feature stainless steel bodies for strength and corrosion resistance. The gears are made of durable PEEK to withstand wear and chemical exposure. Shaft options include 316L stainless steel, ceramic, tungsten steel, and titanium alloy to meet diverse application demands.
- Stainless steel provides solid mechanical strength and excellent resistance to corrosion. This ensures the pump can operate reliably in harsh chemical environments without degrading over time.
- PEEK (Polyetheretherketone) is a high-performance thermoplastic known for its exceptional mechanical properties. PEEK is incredibly strong, resistant to wear, and able to withstand extreme temperatures and harsh chemicals. In a gear pump, this means the gears will last longer without degrading, even under continuous use.
- For the shaft, 316L stainless steel offers good corrosion resistance, ceramic provides high hardness and wear resistance, tungsten steel is tough under mechanical stress, and titanium alloy combines strength with light weight for specialized applications.
Magnetic Coupling in Micro Gear Pump
If transferring power from the motor to the pump’s gears uses a physical shaft connection, leaks where the shaft passes through the pump casing. To solve this, micro gear pumps use magnetic coupling — a clever method that transfers power without any direct contact.
Magnetic coupling works with two sets of magnets: an outer magnet and an inner magnet. The outer magnet is fixed on the motor shaft. When the motor spins, it turns the outer magnet. Inside the pump, the inner magnet is attached to the gear shaft. The magnetic force between the two magnets causes the inner magnet to spin in sync with the outer magnet.
Magnetically coupled pumps are commonly used in industries where leakage is a concern, such as chemical processing, pharmaceuticals, and food production. They are also more efficient, as there is minimal wear on the components, and they require less maintenance compared to pumps with mechanical seals. These pumps are also highly reliable and can handle hazardous and volatile liquids with ease, making them ideal for sensitive applications.
key benefits:
- Leak-Free Operation: Magnetic coupling eliminates the need for shaft seals, effectively preventing leaks. This is crucial when handling hazardous, corrosive, or sensitive fluids.
- Reduced Wear: Without a direct mechanical connection between the motor and pump, there is less friction and wear on parts. This extends pump life and lowers maintenance costs.
- Reliable Power Transfer: While magnetic coupling avoids mechanical contact, it still provides stable and consistent power transfer, ensuring smooth pump operation even under demanding conditions.
- Quiet and Stable Operation: Pumps with magnetic coupling run quietly and with minimal vibration, improving overall reliability and user experience.
- No Shaft Seals Required: The absence of shaft seals means less downtime due to seal replacement, increasing operational uptime and reducing maintenance efforts.
Frequent Asked Questions
1. Q: Are you a factory or trading company?
A: We are a professional micro gear pump manufacturer
2. Q: Do you provide OEM/ODM service?
A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.
3. Q: Is there a MOQ?
A: We support one sample order, but some customization options are only available for particular MOQ.
4. Q: How to pay?
A: Curretly we accept T/T, Credit Card, Alibaba Assurance Order Payment. Others to be opened…
5. Q: What is your Terms of Payment?
A：100% full payment for samples or first purchase, for bulk can be discussed with sales.
6. Q: What’s your Term of Trade?
A: DAP as priority, also EXW, DDP, FOB acceptable.
7. Q: What is your delivery time?
A: It depends on your order quantity. Standard items within 5 -7 days delivery, bulk or customized will delivery in 20-25 days. Please check with sales staff for details.
8. Q: What’s the delivery method and shipping cost?
A: Generally we send Air Freight Express among (DHL,FedEx, UPS), please provide your receiving address to our sales and we will quote the corresponding shipping cost. Or we can send it according to your requirement. P.S. Chinese domestic shipping is free.
9. Q: How do you control the quality ?
A: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.
10. Q: What after-sale service can you provide?
A: We provide 1 year warranty and lifetime online technical support.
Why Choose CHENHUI For Micro Gear Pumps?
CHENHUI is a reliable micro gear pump manufacturer and supplier from China. Our magnetic coupled micro gear pumps guarantees high quality, competitive pricing, and reliable performance.
Our pumps undergo strict quality control for durability and efficiency. With affordable pricing and a one-year warranty, we also provide excellent after-sales support. Timely delivery ensures your projects stay on schedule. Chenhui offers a trusted, cost-effective solution with full support.
Our micro gear pumps can be customized with different materials and sizes to match your exact flow and pressure needs. We adjust pump parameters to fit specific chemical compatibilities and temperature ranges. Custom orders support low minimum quantities, allowing precise solutions without excess inventory.
